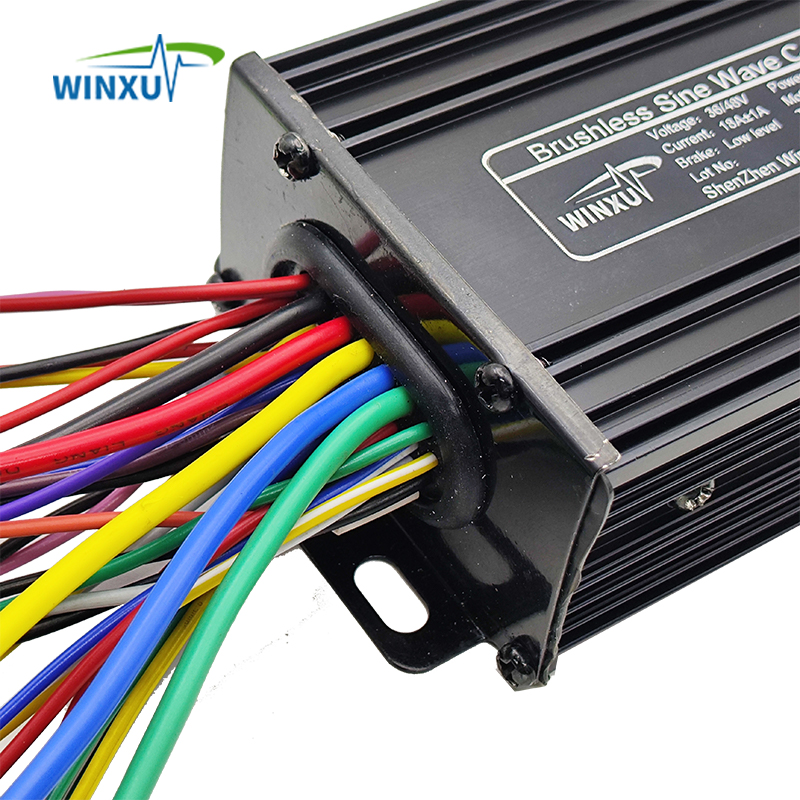

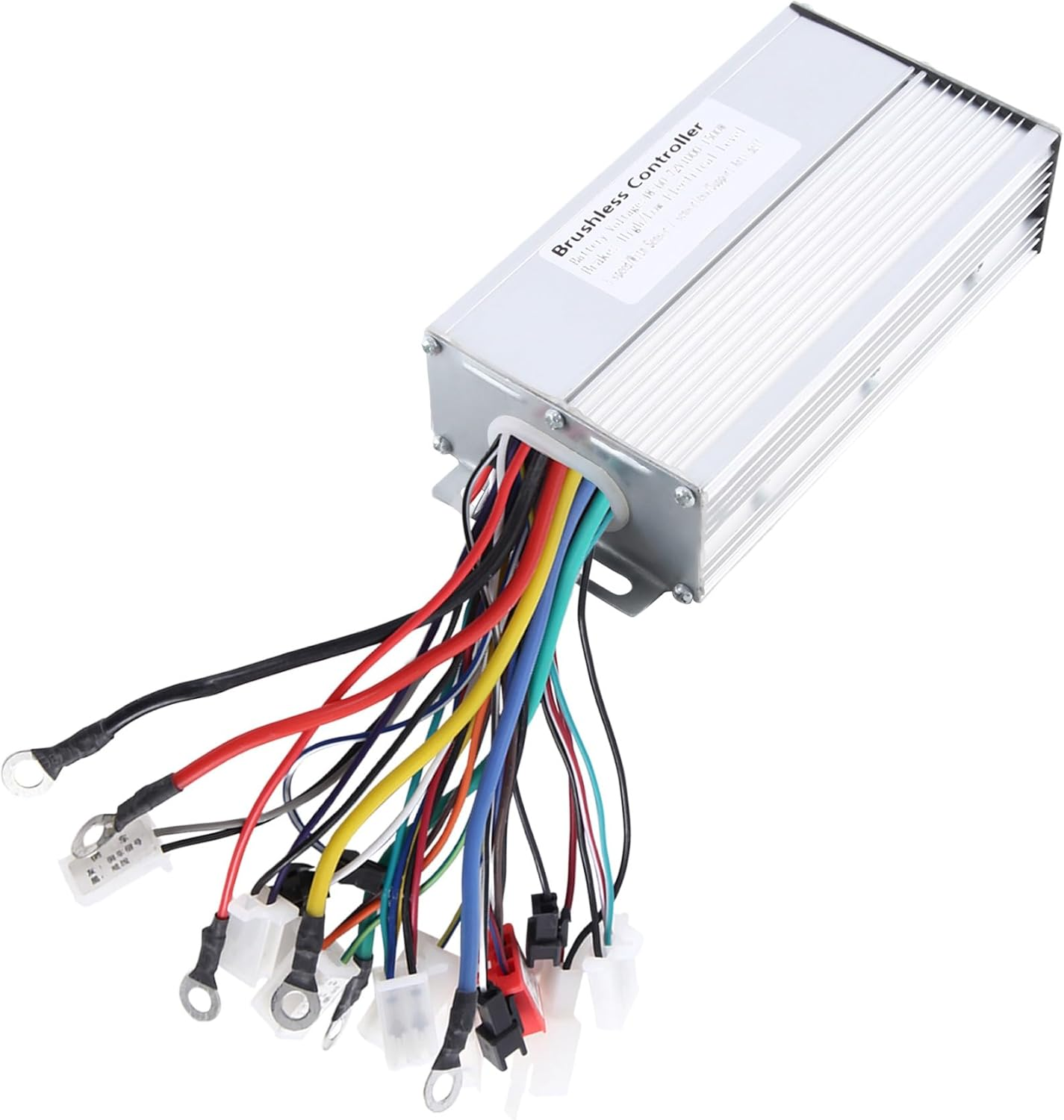

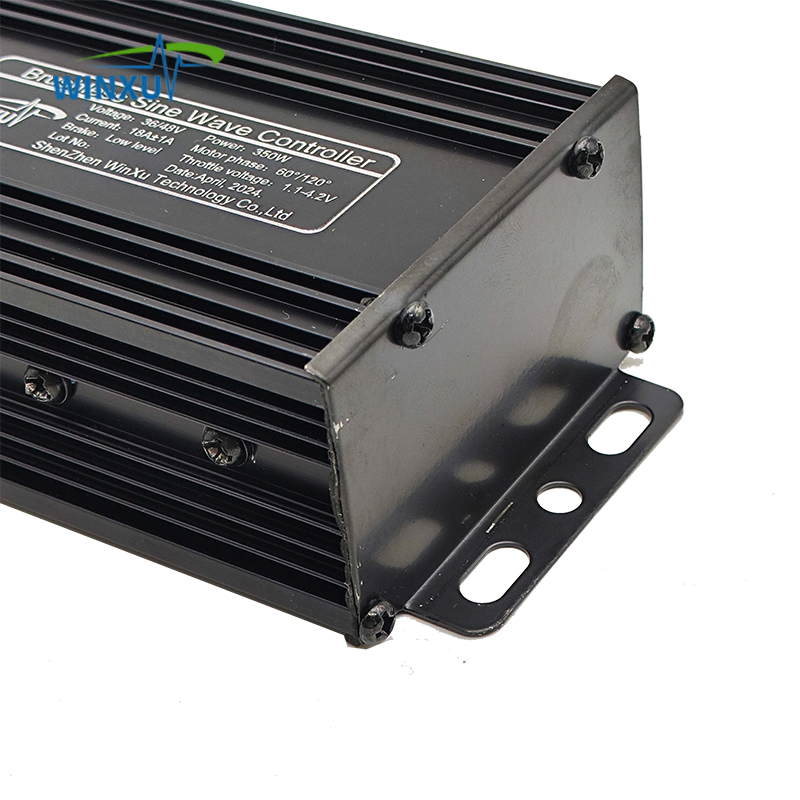

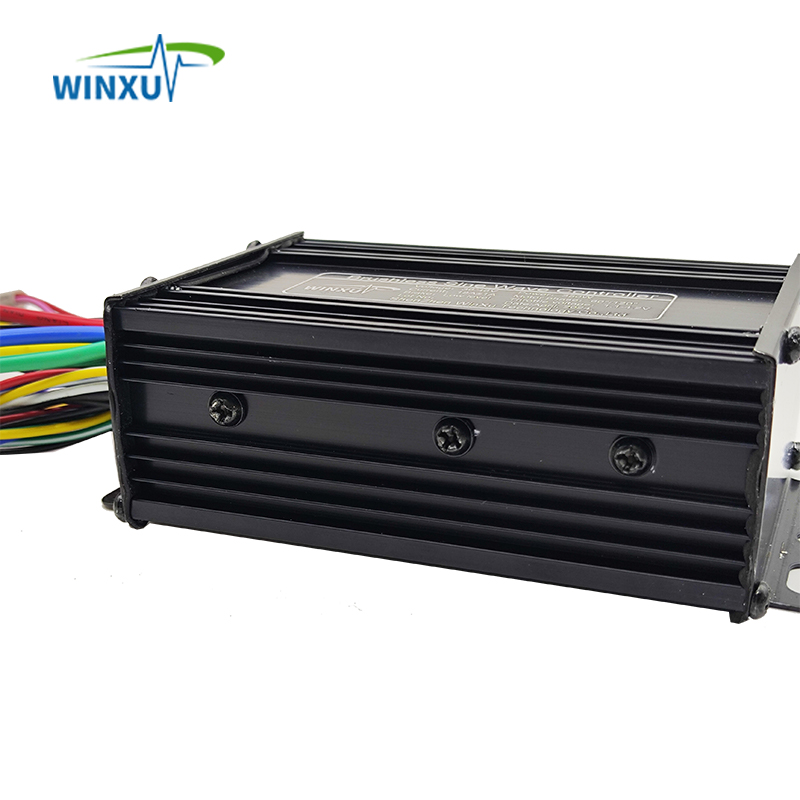

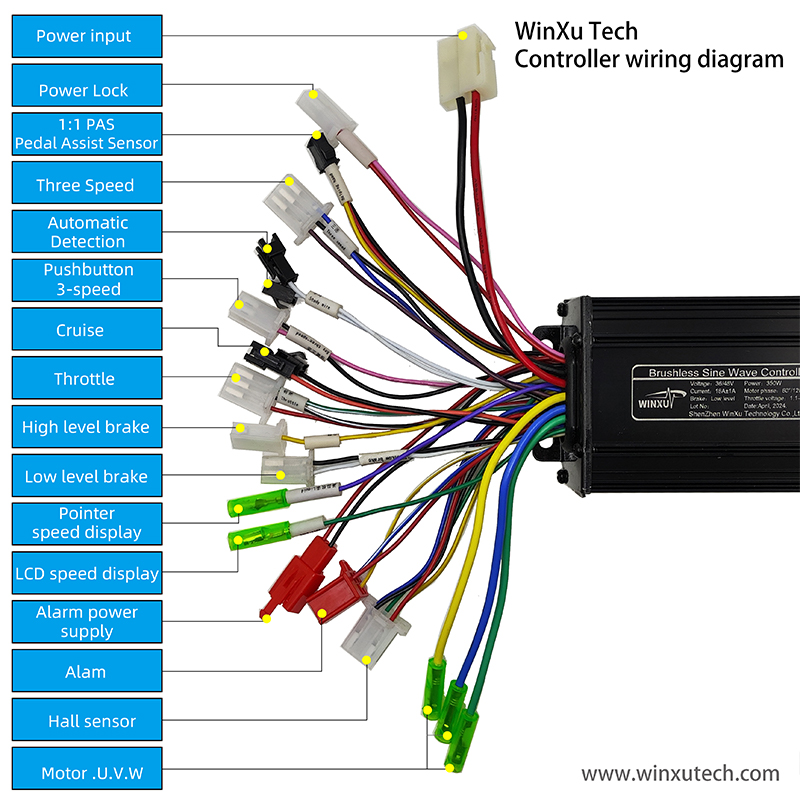

36V 48V 350W 18A E-Scooter Brushless Motor Sine Wave Controller LCD Speed Display Throttle for Electric Bicycle Scooter Tricycle

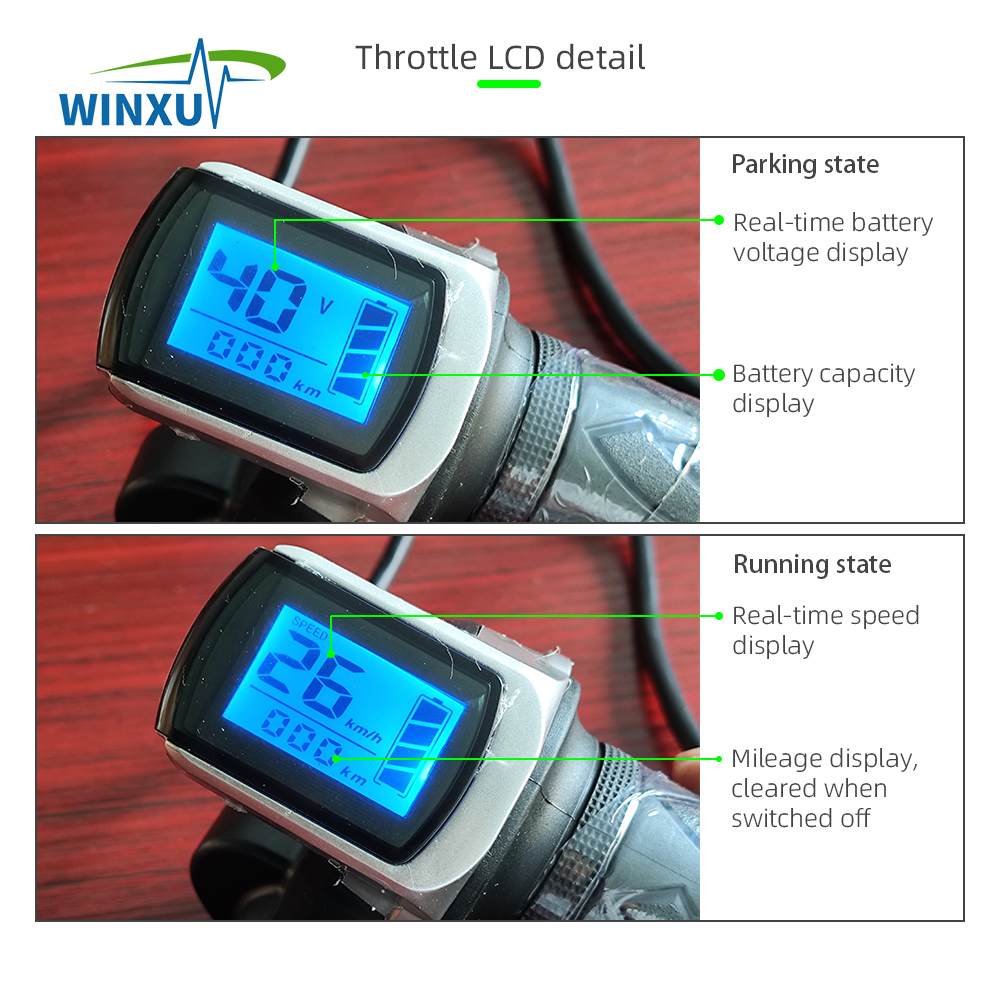

For more controller please contact online customer service Packing list: 1 PCS of controller We are factory store and support wholesale. If you order a large quantity, please contact our online customer service and we will provide you with wholesale price Electric Bicycle Brushless Motor Controller WinXu Tech brushless motor drive controller, automatically compatible with all motors on the market Sine Wave Controller & LCD Throttle Kit PRODUCT DATESHEET ●product size：105x35x70mm ●Rated Voltage：DC 36V 48V ●Rated Power: 350W ●Rated Current:: 18A ●Low Voltage Protection: 30V 42V ●Standby Power Consumption: ＜5mA ●Housing Materials: Aluminium alloy ●Water proof: IPX6 ●Motor Matching： Brushlees Motor ●Display Matching: Ordinary LED & LCD display FUNCTIONS & FEATURES ●Super low noise: Reduce the motor torque ripple to minimum ;Achieve vehicle noise -Free vibration -Free and Comfortable riding feeling (Imitation torque ) ●High efficiency; Field oriented control (FOC)Driving technology allows higher system efficiency ,Lower heat loss and longer riding mileage. ●Multiple protections; Over-current protection ,Over voltage /Under voltage protection ,Overhead protection runaway protection ,Short-Circuitprotection Phase wire disconnect protection ,Blockage protection . ●Flexible configurations; All the functions of the controller depend on the needs of customers AI Intelligent Processing Chip, Stable Operation Automatic recognition of motor mode, automatic compatibility with all brushless motors, multi-automatic protection function High power controller for stable climbing 250W To 3000W multi-power model available, strong driving motor, high climbing efficiency and fast speed WinXuTech Brushless Controller Suitable For Various Electric Bicycles/ Scooters/ Tricycles IPX7 deep waterproof, no fear of wind and rain WniXu Tech brushless series controller adopts deep waterproof seal design, and the waterproof grade can reach IPX7. You do not need to worry about thunderstorm weather or riding in the water. Pure aluminum alloy radiator shell, fast cooling and stable operation The controller uses aluminum alloy radiator as shell material. Scientific research has found that aluminum alloy material can perfectly realize rapid heat dissipation and cooling, keep the internal MOS in a low temperature state all the time, and prolong the service life of the controller. Product Size Small figure, big function. Perfect pure aluminum alloy material, using industry standard size, compatible with more electric bicycles/scooters 350W Controller Wiring diagram Support custom service. Please contact online customer service 350W controller function description Please follow the steps described below to connect the controller to your Ebike motor 1. Motor A.B.C Brushless motor are usually 3 motor wires (thick blue, green, yellow) and 5 Hall wires (5P connectors). Please connect the 3 motor wires ABC of the controller to your motor wires, please note that the same colours are connected together. 2. Hall sensor In the second step please connect the 6P Hall sensor connector to the Hall wire of your motor, if the connectors are not the same you can cut the wires to connect. Please note that the same colour must be connected correctly. Red is 5V+. Black is 5V negative. 3. Throttle Red: 5V + pole, white (green): throttle signal, black: 5V - pole. 3P male connector Please connect the controller throttle wires to your throttle connector, if your throttle connector is not the same as the controller connector you can cut the wires to connect, please note the 5V + and - and signal wires. Please take care to connect the wires correctly. 4. three speeds Blue: high speed, black: negative, brown: low speed. 3P male connector. High speed: speed 120%, medium speed: speed 100%. Low speed: speed 80%. Please connect to your 3 speed switch wires as described above, the controller uses medium speed when vacant and not connected. If your 3 speed switch connector is different you can cut the wires to connect, please take care to connect correctly. 5. Low level brakes White and black wire 2P male connector. The controller has 2 brake wire connectors, please connect to your left and right manual brakes. When the black and white wires are shorted together, the controller will cut off power to the motor. 6. Automatic cruise Pink wire and black wire with black male and female connectors. Please connect to your throttle cruise button cable. If the connectors are different, you can cut the wires to connect. This feature means that when switched on the speed will be constant at the speed you had before you switched on the automatic cruise. If you do not use this function then you can leave this connector unconnected. 7. Alarms Red, blue, yellow, 3 wire 4p red connector. Please connect to your alarm 4p connector, this is the alarm signal control function connector, if you do not need this function then you can leave it unconnected. 8. Alarm power su
